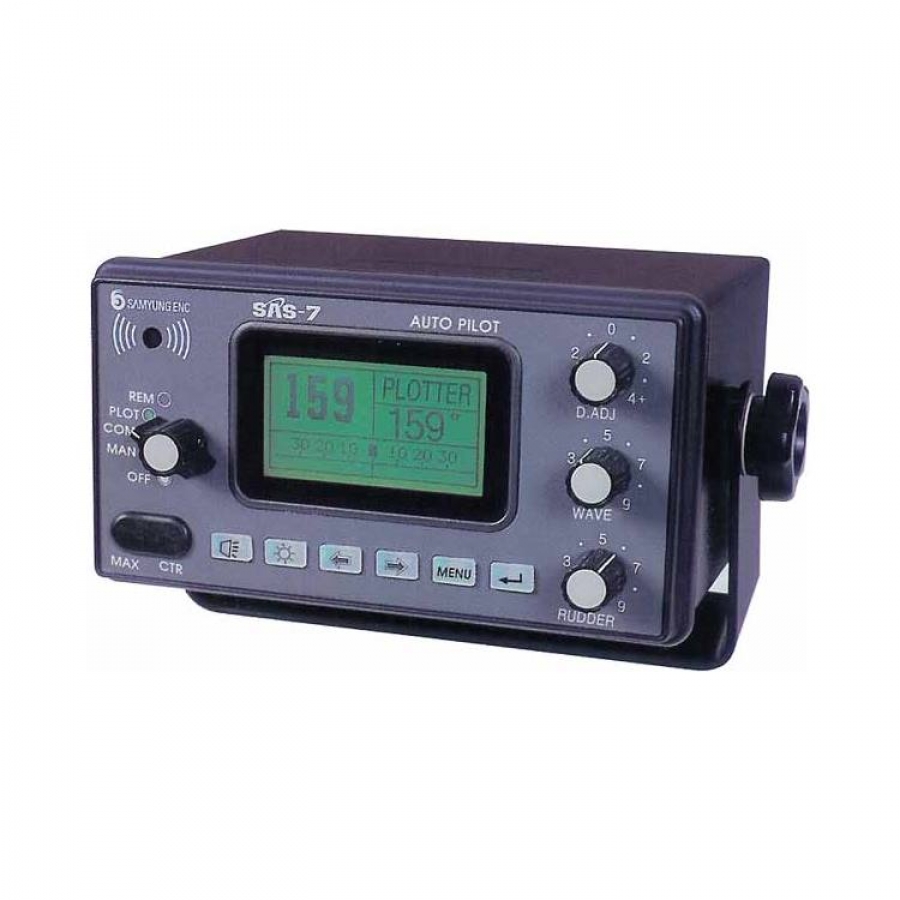

Samyung SAS-7 Autopilot
SAS-7 is automatic marine navigation system for control the ship, which collect the whole information like ships location, direction, true speed, the route to navigate, the direction to navigate and the direction of magnetic north.
SAS-7 is small, light weight, and easy to control.
Built-in intelligent technology that ensures accurate navigation to destination without error.
Save manpower, time and energy.
Application
• Main unit with large LCD
• Improvement of bearing by high-density integrated circuit
• Improvement of straight navigation by compatible GPS COMPASS
• All information in one large LCD screen
• Able to compensate difference on electronic compass automatically by ship turning 360˚
• Self-diagnostic function when alert message occurs
• Rubber keyboard allows easy operation and permanent durability
• Auto navigation available if GPS Plotter connected
• Easy to connect with existing auto pilot system
• Electronic Compass included
• Angle Sensor included
• Angle Indicator included
• Remote Controller included
• Interface to external GPS plotter
• Heading Angle Resolution : 0.5˚ (Electronic Compass)
• Direction Setting Resolution : 1˚
• Temperature: -15˚C ~ +55˚C
• Signal output of solenoide : Max. 3A, +Common, -Output
Download attachments:
- Brochure of Autopilot Samyung SAS-7 (1209 Downloads)
- User Manual of Autopilot Samyung SAS-7 (1250 Downloads)
- CE certificate of Autopilot Samyung SAS-7 (1022 Downloads)
