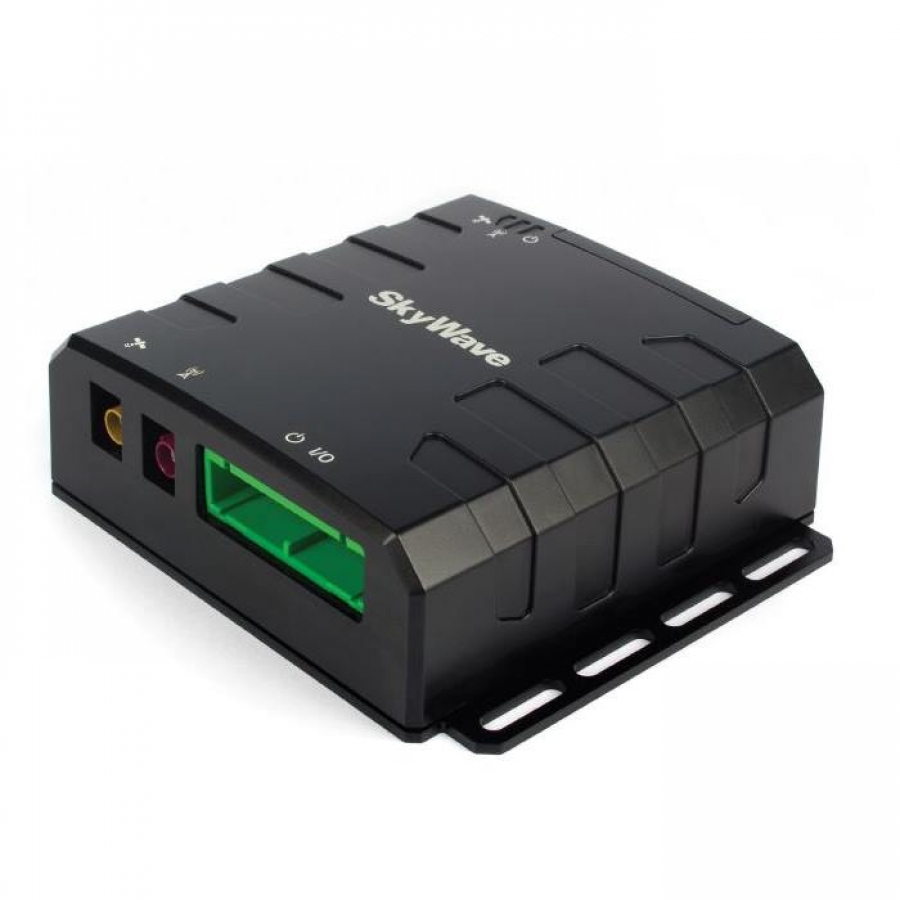

Tracker Orbcomm SkyWave IDP-782

The feature-rich, fully programmable SkyWave IDP-782 delivers connectivity to assets in fleet management applications both in and out of cellular range. The SkyWave IDP-782 is available as cellular-only or as an integrated, dual-mode cellular-satellite device. For dual-mode applications, fleet managers get the best of both worlds—lower cost cellular coverage and reliable, always-on satellite communications over the two-way IsatData Pro satellite data service anytime the cellular network is unavailable—all from a single source provider.
The SkyWave IDP-782 features a flexible architecture that supports the development of custom applications for more complex solutions, and the use of configurable software applications for quicker deployments.

   • Flexible programming with LUA Framework
   • Saves satellite airtime costs
   • Uninterruptable operation
   • Rich functionalities and interfaces
   • Driver safety and security
   • Garmin FMI ready
   • Anti-jamming protection

Applications
   • Fleet management in areas with poor or without GSM coverage including maritime applications
   • AVL and SCADA
   • For installations in heavy and lightweight trucks, boats, other technological equipment, security applications in areas with no GSM coverage

Technical characteristics

Supported networks    Two-way, Global, IsatData Pro, GSM modem with 2 SIM cards support
Battery   Battery backup: >12h operation with 1 minute cellular reporting or 10-minute satellite reporting
Case   IP65 with additional protector
Digital inputs/outputs   4 config. Analog/digital inputs/outputs, 2 dedicated outputs (sink-ground)
RS232/RS485/CAN   2xRS232, 1xRS485, 1xCAN
Internal memory   16MB
Accelerometer   13 axes
1 Wire   1–Wire peripherals
Configuration   Over the air or COM port
GPS/GLONASS antenna   External
GSM antenna   External
Power supply   9–32 V DC
Operating temp. range   -40°C +85°C
Dimensions   100x137x38 mm
