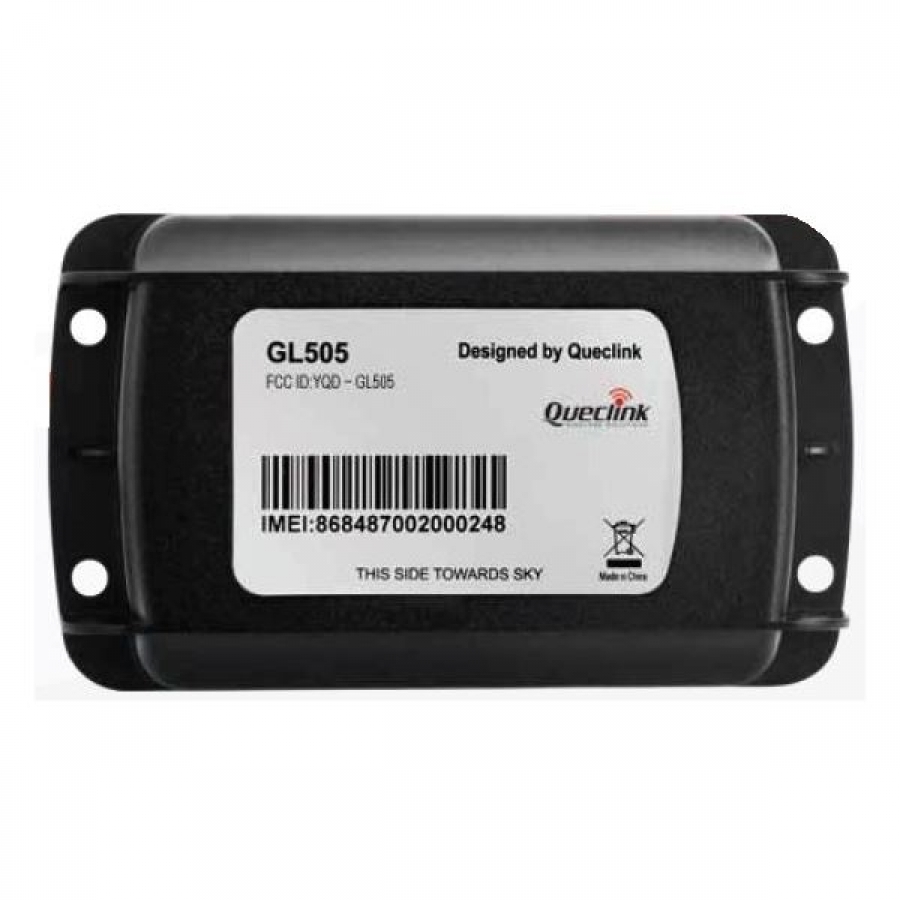

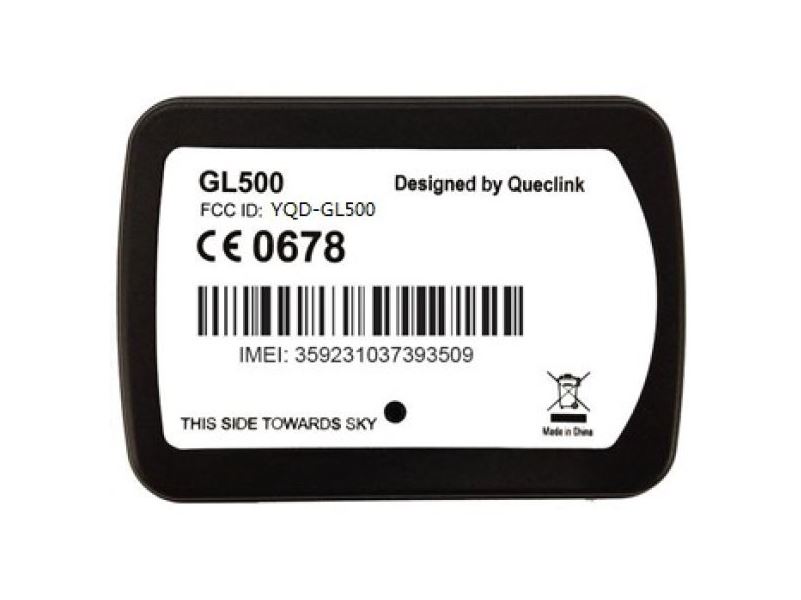

Tracker Queclink GL500/GL505
GL500/ GL505 is a powerful GPS tracker designed for fixed asset tracking applications (beehive, caravans, containers, wagons, etc.). It is powered by user replaceable CR123A lithium battery pack. The internal accelerometer and temperature sensor can be used to create custom flexible scenarios for alarm reporting.
• Low power consumption, long standby time for about 1 800 days
• Powered by two user replaceable lithium batteries (CR123A)
• Internal GPS and GSM antennas
• Internal temperature sensor and 3-axis accelerometer for motion detection
• Internal microphone (optional)
• Support up to 5 internal geo-fence regions
• IP67 case (for GL505)
Applications
• Containers and parcels tracking
• Beehive tracking
• Tracking of caravans, construction equipment, wagons and etc.
• Discrete vehicle monitoring with fast and easy installation (available option for voice listening)
Technical characteristics
| Supported networks | Four band GSM modem | |
| Battery | CR123 | |
| Case | IP67 (GL505) | |
| Sensors | Temperature sensor | |
| Accelerometer | 3 axes | |
| Configuration | Over the air through GSM or COM port | |
| GPS/GLONASS antenna | Internal | |
| GSM antenna | Internal | |
| Power supply | 3V DC | |
| Operating temp. range | -20°C +60°C | |
| Dimensions | 80x58x27 mm |
Download attachments:
- Brochure about Tracker Queclink GL500 (1060 Downloads)
- Brochure about Tracker Queclink GL505 (1163 Downloads)
