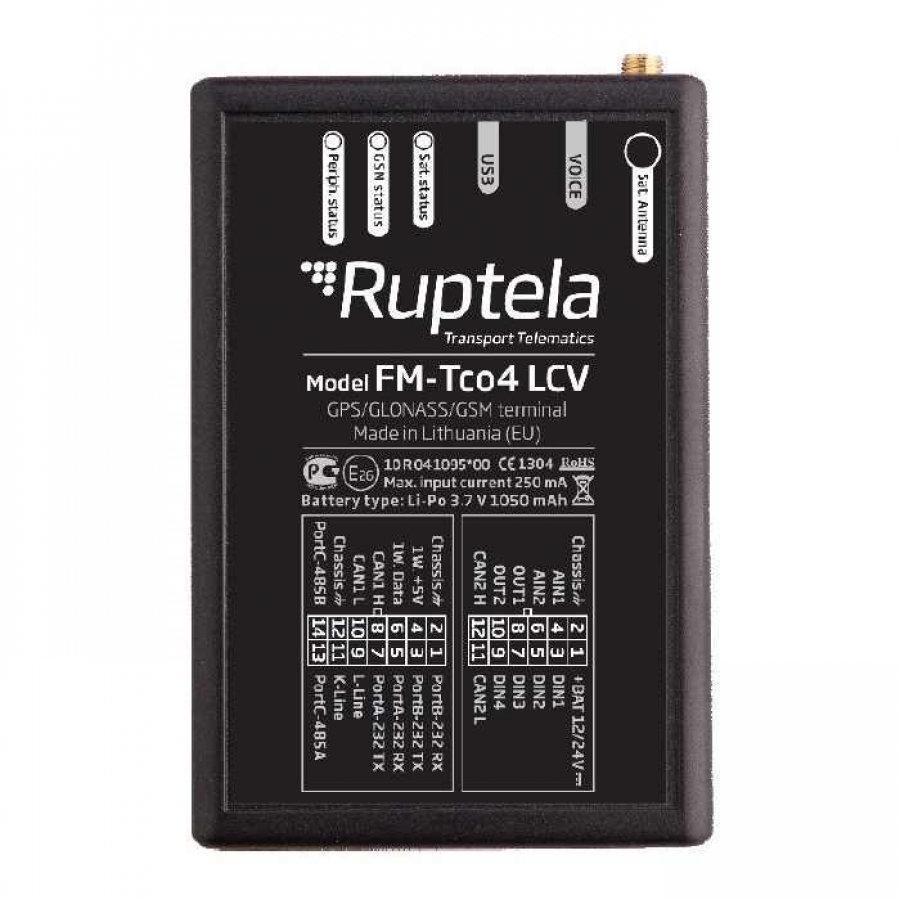

Tracker Ruptela FM-Tco4
FM-Tco4 LCV purpose is to track and monitor light commercial vehicles, such as vans and passenger cars. Device reads LCV on-board computer (CANbus) data and provides vehicles location, route, speed, mileage and other information. Usually it is difficult to monitor light commercial vehicles fuel level and consumption with additional fuel level sensors, therefore FM-Tco4 LCV gathers fuel level and consumption information straight from vehicles on-board computer.
• Voice calls
• OBD II remote diagnostics
• LVC CANbus data reading
• Garmin FMI ready
• Driver behavior monitoring (Eco-Drive)
• Temperature monitoring
• Driver registration and identification
• Remote ignition blocking
• Fuel control and management
• Internal geofencing
• Anti-jamming
• FOTA
Applications
• Extended fleet monitoring and control
• Vehicle security applications
• Fuel control and management
• Driver behavior improvement
• Route and order optimization
Technical characteristics
| GPS/GLONASS module | Ublox MAX-7C | |
| Battery | Internal Li-Po 1050 mAh | |
| Digital inputs | 4 inputs | |
| Analogue inputs | 2 inputs | |
| Digital outputs | 2 outputs | |
| CAN bus | LCV | |
| RS232/RS485 | 2xRS232, 1xRS485 | |
| Internal memory | 4 MB (up to 32 GB) | |
| Accelerometer | 3 axes | |
| 1 Wire | 1–Wire peripherals | |
| Configuration | Over the air through GPRS or USB | |
| GPS/GLONASS antenna | External | |
| GSM antenna | Internal | |
| Power supply | 10–32 V DC | |
| Operating temp. range | -35°C +55°C | |
| Dimensions | 111x75x25 мм |
