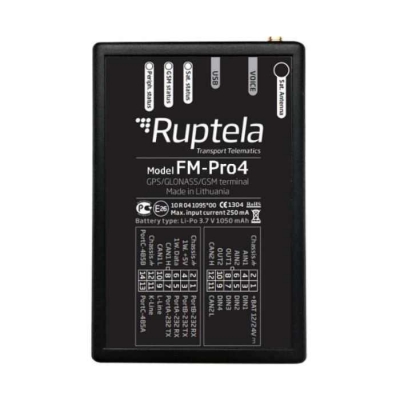

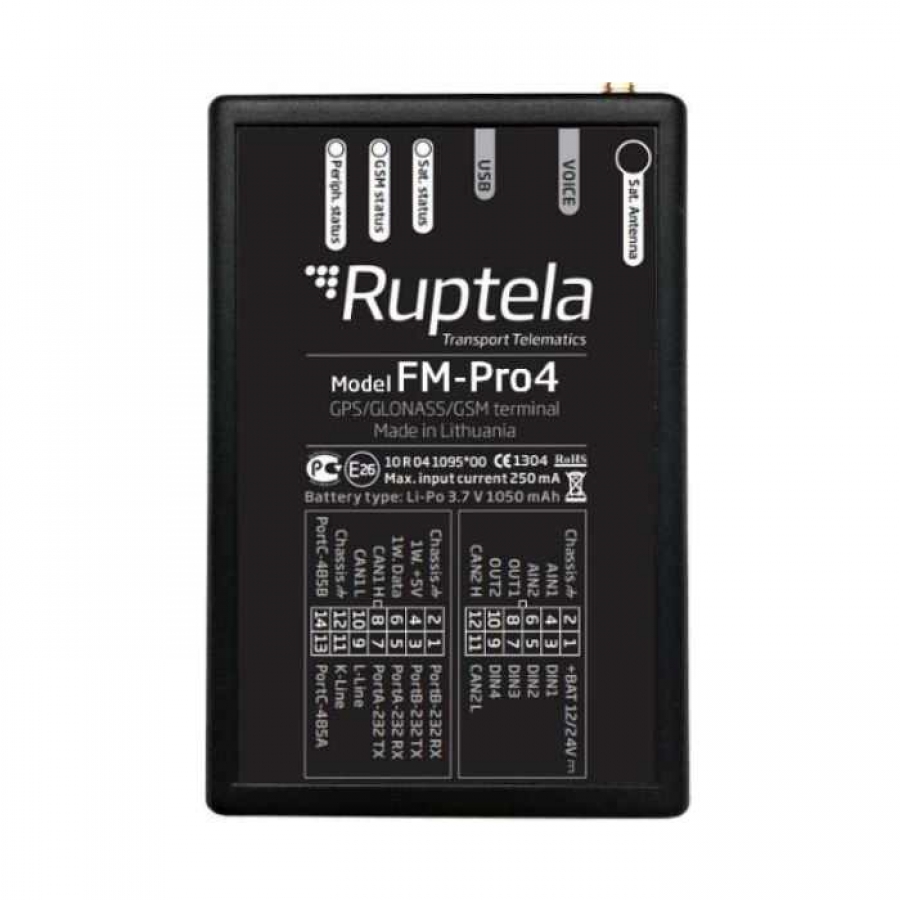

Tracker Ruptela FM-Pro4
FM-Pro4 is an advanced GPS tracker designed for different types of heavy commercial vehicles such as trucks, agriculture, building and other special machinery. Device purpose is to track and monitor vehicle and its activity parameters. Despite the data provided by GPS tracking this device also obtains vehicles on-board computer (CANbus) data from FMS and J1708 standards.
• Garmin FMI ready
• FMS and J1708 CANbus data reading
• Driver behavior monitoring (Eco-Drive)
• Temperature monitoring
• Driver registration and identification
• Remote ignition blocking
• Fuel control and management
• Internal geofencing
• Anti-jamming
• FOTA
Applications
• Extended fleet monitoring and control
• Temperature monitoring
• Fuel control and management
• Driver behavior improvement
• Route and order optimization
Technical characteristics
| GPS/GLONASS module | Ublox MAX-7C | |
| Battery | Internal Li-Po 1050 mAh | |
| Digital inputs | 4 inputs | |
| Analogue inputs | 2 inputs | |
| Digital outputs | 2 outputs | |
| CAN bus | FMS, J1708 | |
| RS232/RS485 | 2xRS232, 1xRS485 | |
| Internal memory | 4 MB (up to 32 GB) | |
| Accelerometer | 3 axes | |
| 1 Wire | 1–Wire peripherals | |
| Configuration | Over the air through GPRS or USB | |
| GPS/GLONASS antenna | External | |
| GSM antenna | Internal | |
| Power supply | 10–32 V DC | |
| Operating temp. range | -35°C +55°C | |
| Dimensions | 111x75x25 мм |
